FY-SLA-1600 3d printer

Fengyuan SLA type 3d printer
Fengyuan SLA 3d printers are equipped with cutting-edge hardware and smart control systems, ensuring a reliable 3D printing process.
These printers significantly increase printing speed while maintaining exceptional print quality.
This perfect balance of speed and precision accelerates product innovation and time-to-market.

Collect
Features

Stereolithography employs a vat of liquid curable photopolymer resin and an ultraviolet laser to build the object’s layers one at a time. For each layer, the laser beam traces a cross-section of the part pattern on the surface of the liquid resin. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and fuses it to the layer below.

After the pattern has been traced, the SLA’s elevator platform descends by a distance equal to the thickness of a single layer, typically 0.05 mm to 0.15 mm (0.002″ to 0.006″). Then, a resin-filled blade sweeps across the cross section of the part, re-coating it with fresh material. On this new liquid surface, the subsequent layer pattern is traced, joining the previous layer. Depending on the object & print orientation, SLA often requires the use of support structures.



Details

Fengyuan's SLA 3D printers leverage the groundbreaking HALS (Hindered Asynchronous Light Synthesis) technology. With a variety of models offering different build volumes and advanced features, there is a TAPS printer tailored to your specific needs, delivering precision and efficiency for every project.


Raw materials

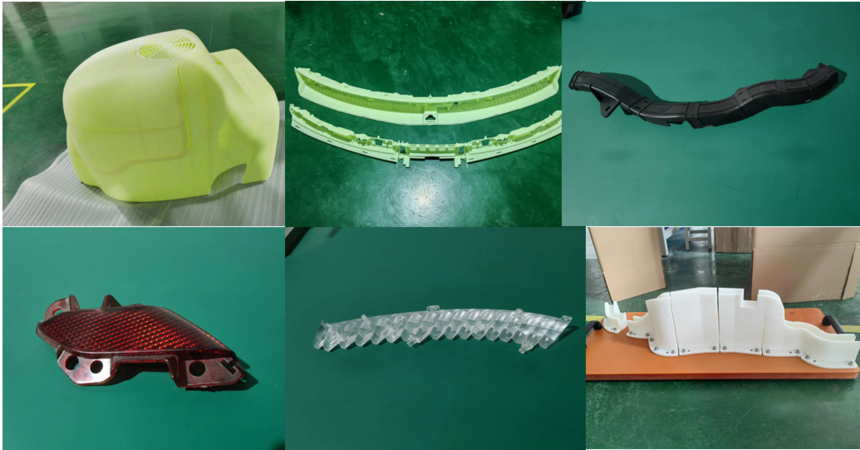

Fengyuan provides a comprehensive range of 3D printing materials, including engineering resins, elastomers, and more. These materials are extensively utilized in industries such as dental, footwear, and automotive, facilitating the creation and production of high-performance functional parts tailored to your specific needs.


Factory scenes

Fengyuan factory is equipped with advanced technologies such as automated production processes, data analytics, and cloud-based monitoring. These innovations significantly enhance 3D printing production efficiency and flexibility, effectively helping customers reduce production costs.

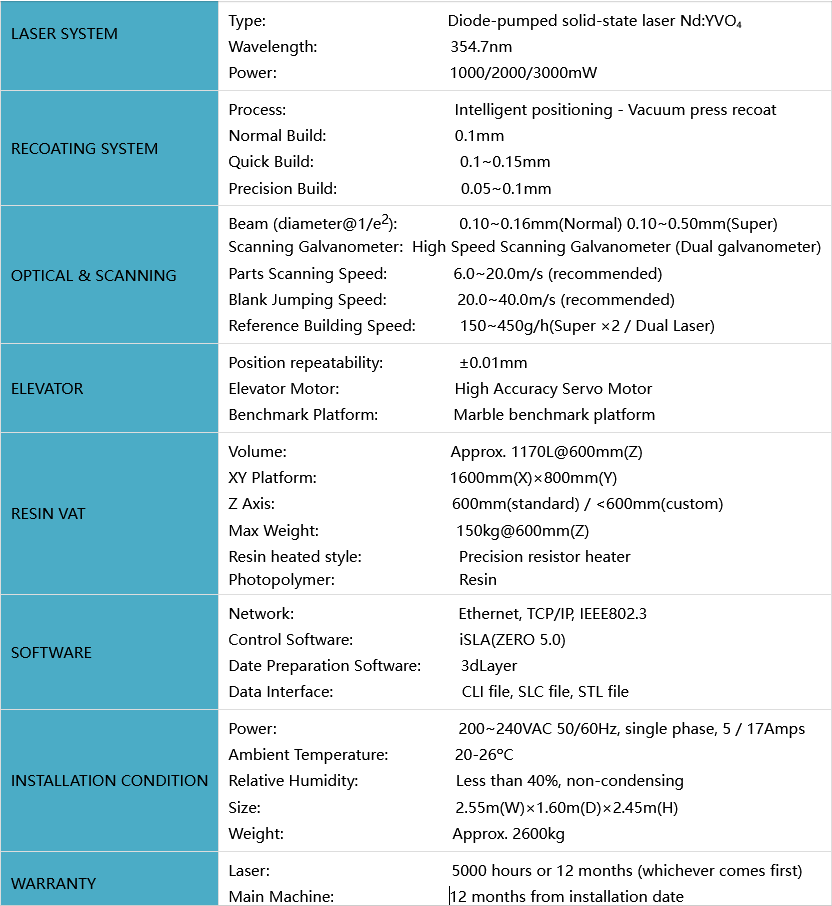

Specification

FY-SLA-1600
