Fengyuan FDM 3d printer

Fengyuan FDM 3d printers are equipped with cutting-edge hardware and smart control systems, ensuring a reliable 3D printing process.

These printers significantly increase printing speed while maintaining exceptional print quality.

This perfect balance of speed and precision accelerates product innovation and time-to-market.


Collect
Features

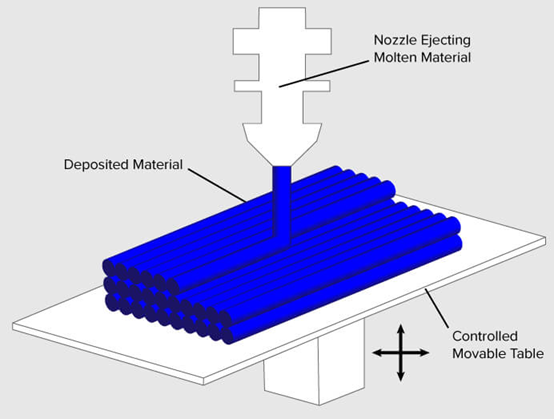

FDM works using a plastic filament which is unwound from a spool and is supplied to an extrusion nozzle which can turn the flow on and off. The nozzle is heated to melt the material and can be moved in both horizontal and vertical directions by a numerically controlled mechanism. The object is produced by extruding melted material to form layers as the material hardens immediately after extrusion from the nozzle.


Details

Fengyuan's FDM 3D printers can equip with CoreXY up to 20000 mm/s² Acceleration,  Vibration Compensation & Pressure Advance, and Direct-drive Extruder. Our story started with the gathering of a team of 3D printing fans, who are also expert engineers in robotics, artificial intelligence, materials science, and internet industries.

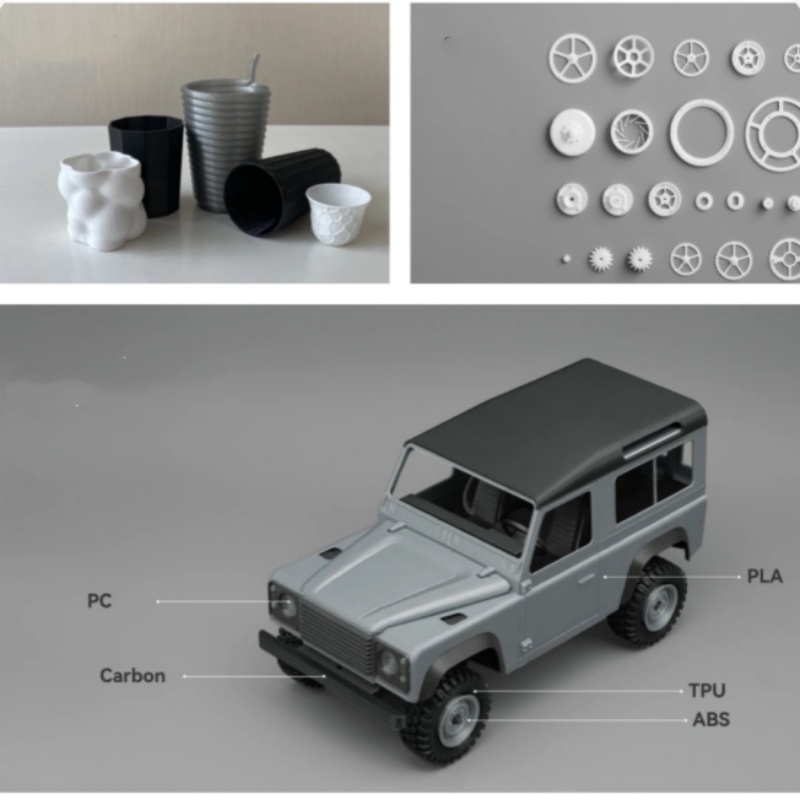

Raw materials

Fengyuan provides a comprehensive range of 3D printing materials, including engineering resins, elastomers, and more. These materials are extensively utilized in industries such as dental, footwear, and automotive, facilitating the creation and production of high-performance functional parts tailored to your specific needs.

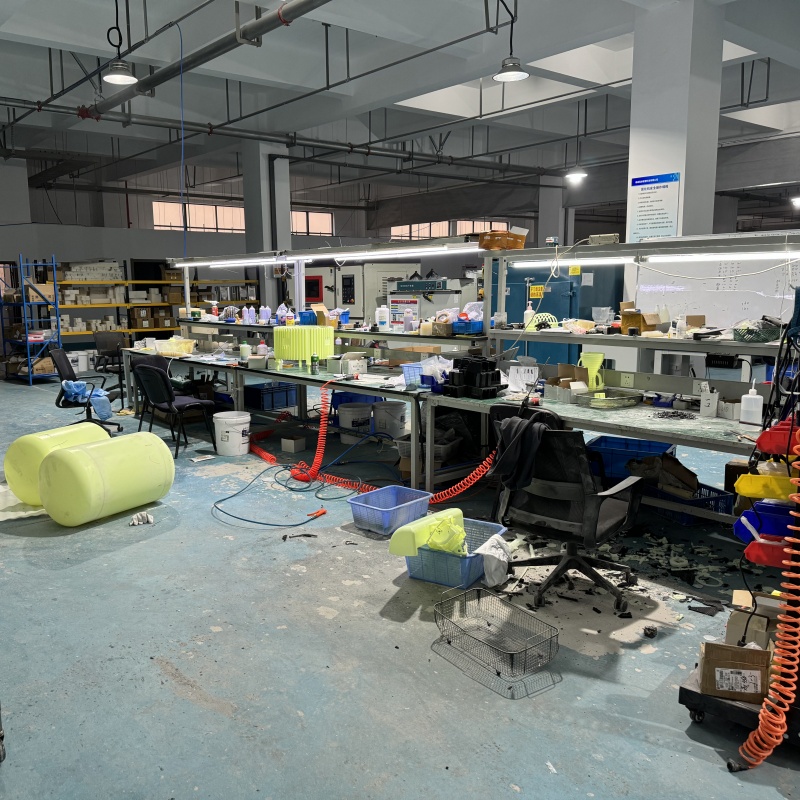

Factory scene

Fengyuan factory is equipped with advanced technologies such as automated production processes, data analytics, and cloud-based monitoring. These innovations significantly enhance 3D printing production efficiency and flexibility, effectively helping customers reduce production costs.



Specification

Physical SizeWeightNet Weight: 14.13 kg
Gross Weight: 18 kg
Power RequirementsVoltage100 - 240 VAC, 50/60 Hz
Electronic DevicesMaximum Power1000 W@220 V, 350 W@110 V
Display Screen5 - inch 1280×720 touch - screen
CommunicationWi - Fi, Bambu - Bus
Capacity4 GB EMMC and supports external Micro SD card
Operation InterfaceTouch - screen, mobile APP, computer application
Motion ControllerDual - core Cortex - M4 processor
Application ProcessorQuad - core 1.2 GHz ARM - A7 processor
Neural Network Processing Unit2 Tops
SoftwareSlicing Software

Bambu Studio. Supports other third - party slicers that can export standard G - code, such as Superslicer, Prusaslicer, and Cura, but some intelligent functions may not be supported.


Slicing Software Supported Operating SystemsMacOS, Windows
